Description

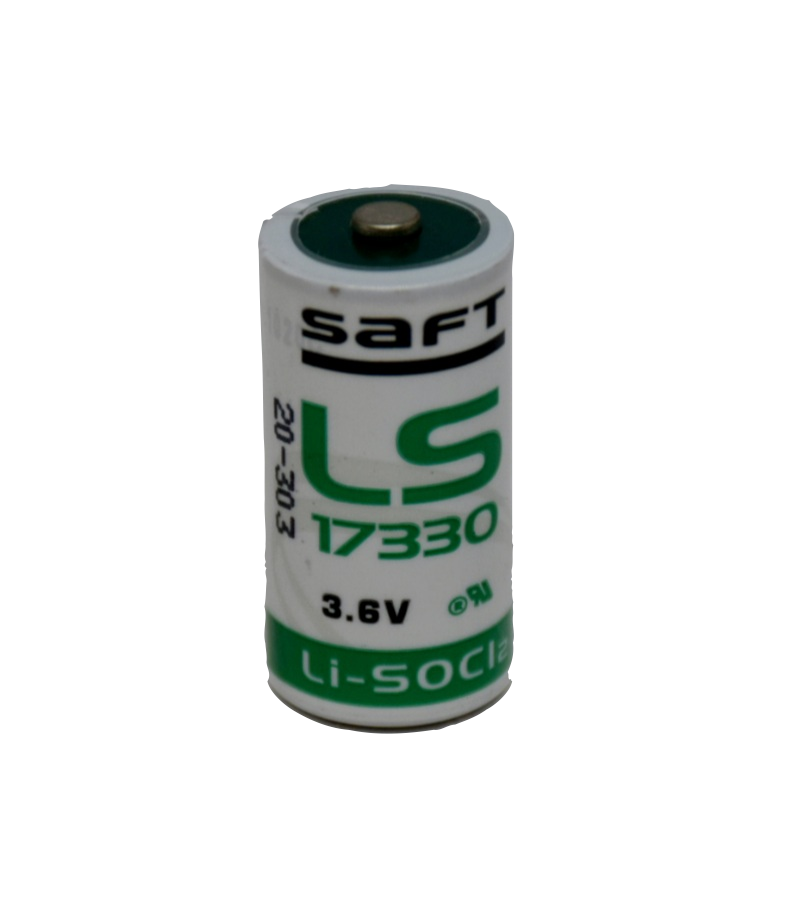

LS17330 – 2/3A-size Bobbin Cell Primary Li-SOCl2 cell
3.6V lithium thionyl chloride
2/3A-size bobbin cell – 2.1Ah
Physical characteristics
Diameter: (max) 16.5 mm (0.65 in)
Height: (max) 33.4 mm (1.31 in)
Typical weight: 14.4 g (0.5 oz)
Li metal content approx. 0.6 g
Benefits
High voltage response, stable during most of the lifetime of the application
Wide operating temperature range (- 60°C/+ 85°C)
Low self-discharge rate (less than 1 % after 1 year of storage at + 20°C)
Low self-discharge compatible with long operating life (less than 1% after 1 year of storage at + 20 °C)
Superior resistance to corrosion
Easy integration into compact systems
Key features
Hermetic glass-to-metal sealing
Non-flammable electrolyte
Underwriters Laboratories (UL)
Component Recognition (File Number MH 12802)
Stainless steel container
Compliant with IEC 60086-4 safety standard and IEC 60079-11 intrinsic safety standard
RoHS and REACH compliance
Made in France, China, UK
Typical applications
Utility Metering
Automatic meter reading
Alarms and security devices
Tollgate Systems
Memory backup
Professional electronics
