Description

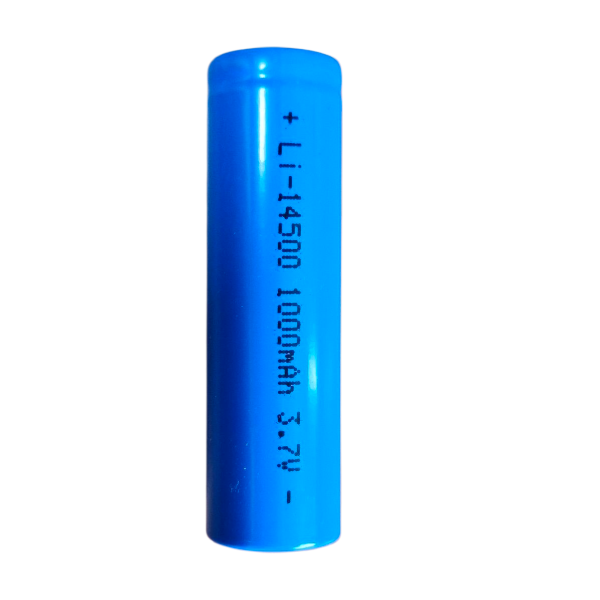

3.7v 1000mAh Li-Ion Cell

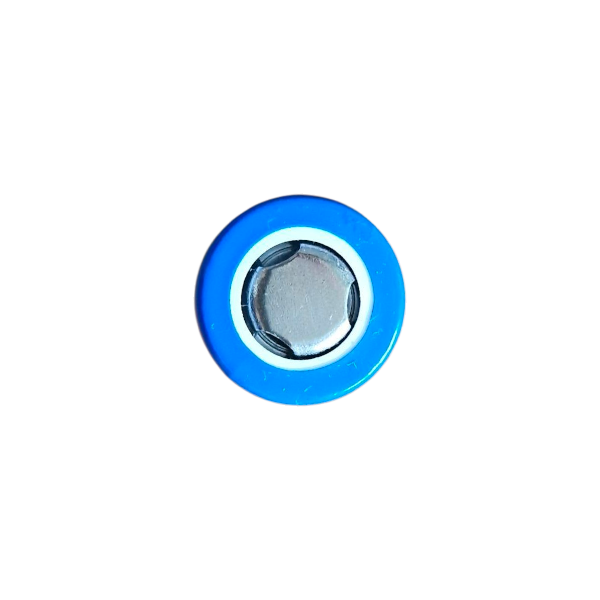

NOTE: This is a flat top, unprotected, lithium-ion cell
| Cell Voltage | 3.7v |
| Capacity | 1000mAh (min) |
| Charge Current Standard | 200mA |
| Std Discharge Current | 200mA |
| Max Discharge Current | 3000mA (Pulse 6000mA) |
| Operating Temp Charge | 0°C to 45°C |
| Operating Temp Discharge | – 20°C to 60°C |
| Dimensions | Diameter: 14.5mm Height: 50.2 mm |
| Weight | 20.2g (max) |
