Description

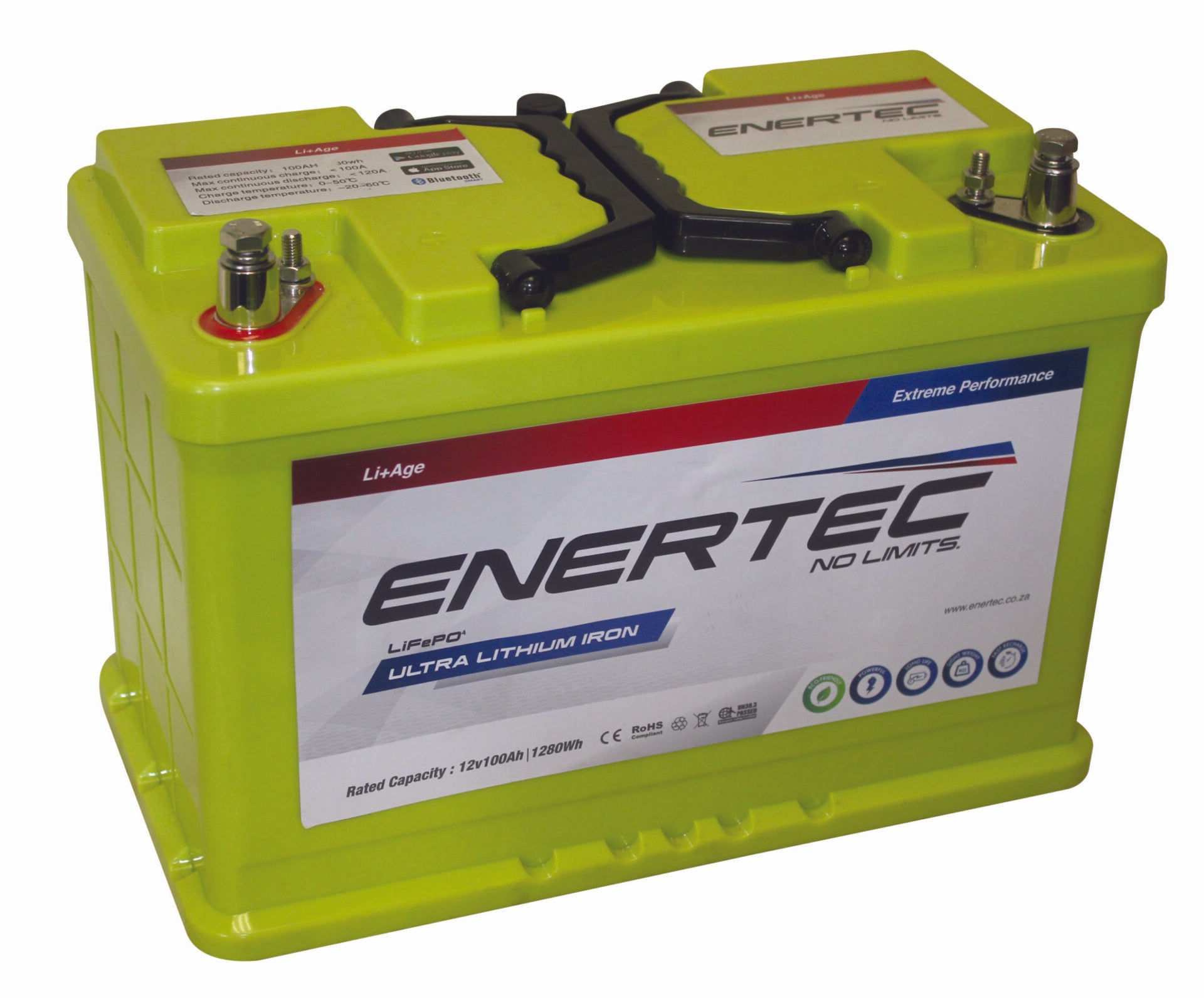

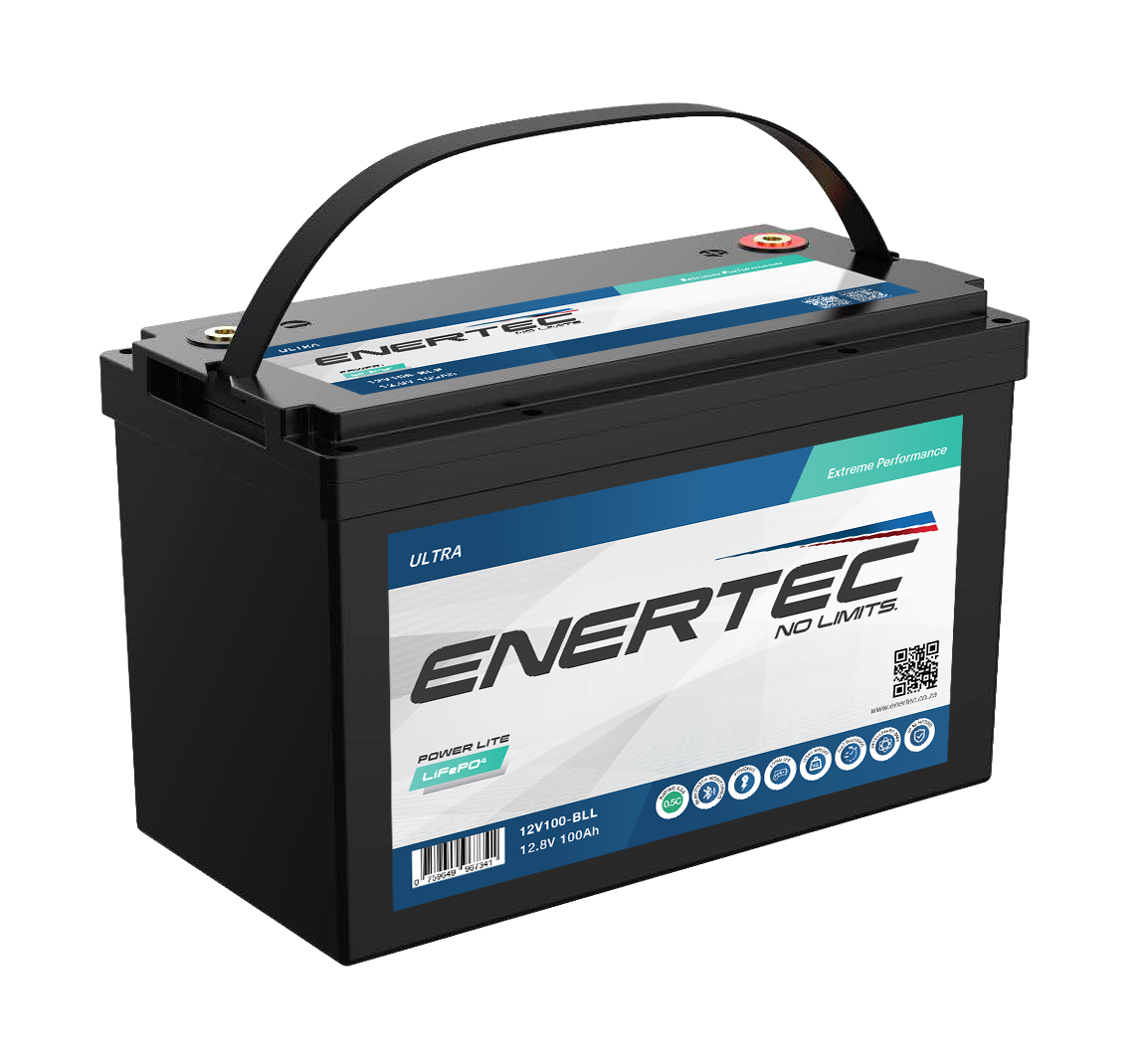

12v 100Ah/1280Wh Lithium Battery with Bluetooth Communication
SPECIFICATIONS
Nominal Voltage: 12.8v
Nominal Capacity: 100Ah
Max Continuous Charge Current: 100A
Recommended Charge Current: 50A
Max Continuous Discharge Current: 100A
Max. Charge Voltage: 14.6v +/- 0.2v
Life Cycle: >2 000 times At 90% DOD
Parallel Connection: Max 4 pcs (400Ah) IMPORTANT: Each battery must be fully charged and voltage difference at <0.02v before this operation
Bluetooth Communication
DIMENSIONS:
Length: 330mm
Width: 172mm
Height: 215mm
Net Weight 11.5kg
Terminals: M8*12mm screw
Insulation: IP65 (splash and dust proof)
UL94 V0 Flame retardant case and cover
BENEFITS
BLUETOOTH MONITORING
• Live monitoring of performance and state of charge of the
battery
POWERFUL
• Up to 100% usable capacity
• Up to 100% Depth of Discharge
• Double the high-current runtime of lead-acid battery
• Up to 98% round-trip efficiency
• Up to 50% more energy efficient than a lead-acid battery
• Up to 1C peak power discharge and charge rate
• Up to 0.5C continuous discharge and charge rate
LONG LIFE
• 10x the life of lead-acid battery (BCI-06)
LIGHT WEIGHT
• Up to 3x lighter than equivalent lead-acid batteries
FAST RECHARGE
• Up to 5x faster charging than new lead-acid batteries
• Up to 10x faster charging than aged lead-acid batteries
INTELLIGENT BMS
• Allows for live monitoring of performance and state of
charge of the battery, through the Bluetooth APP
